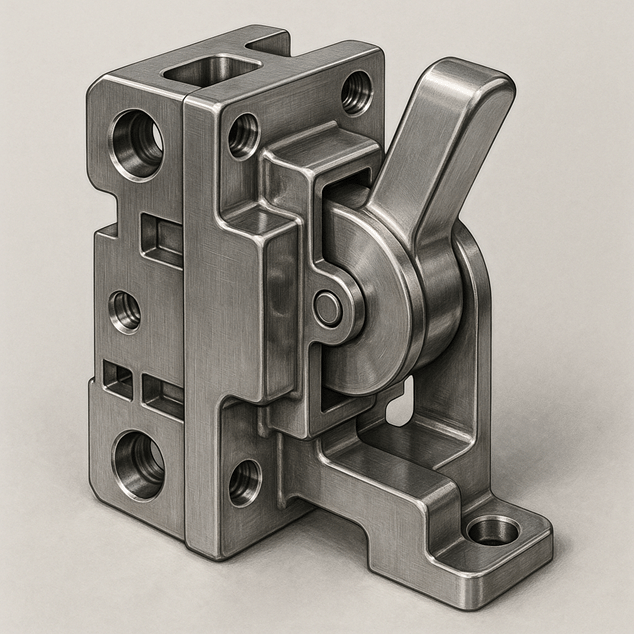

Investment Casting Circuit Breaker Actuator
Do you need project assistance? Get specific answers at no charge from a Shelmet metal casting expert Help Line.
920-622-3344
Introduction
A Chicago-based electrical equipment supplier required a small but durable actuator for medium-voltage circuit breakers. Conventional machined parts wore quickly, risking costly service calls and downtime. The solution needed to combine precision tolerances, mechanical endurance, and corrosion resistance in one compact component.
PROBLEM / CHALLENGE Circuit breaker actuators
Circuit breaker actuators experience repeated high-force cycles under heat, vibration, and electrical stress. Failures in service can result in power outages, safety risks, and warranty claims. The supplier required:
• ANSI/IEEE compliance for medium & high-voltage breakers
• 10,000+ mechanical operations without wear
• Fast response time (<50 ms trip)
• Small, palm-sized casting for integration into compact systems
SOLUTION: Shelmet Precision Casting Actuator
Shelmet Precision Casting produced the actuator using 17-4 PH Stainless Steel, a precipitation-hardened alloy with exceptional strength and corrosion resistance. Investment casting allowed near-net-shape production with tight tolerances on operating surfaces.
Performance Highlights
• Cycles: 10,000+ mechanical operations
• Response Time: <50 ms trip at rated current
• Operating Force: 500 lbs maximum
• Temperature Range: –40°F to 200°F
• Dimensional Precision: ±0.002″ on critical surfaces
• Surface Hardness: 38–45 HRC (precipitation hardened)
RESULTS
Hydrostatic and mechanical cycle testing confirmed compliance with ANSI/IEEE requirements. The component provided extended service life, reduced machining, and ensured repeatable performance under demanding conditions. For power distributors in Chicago’s industrial corridor, the investment-cast actuator proved to be a reliable, long-life solution.
